Microtap II-G5

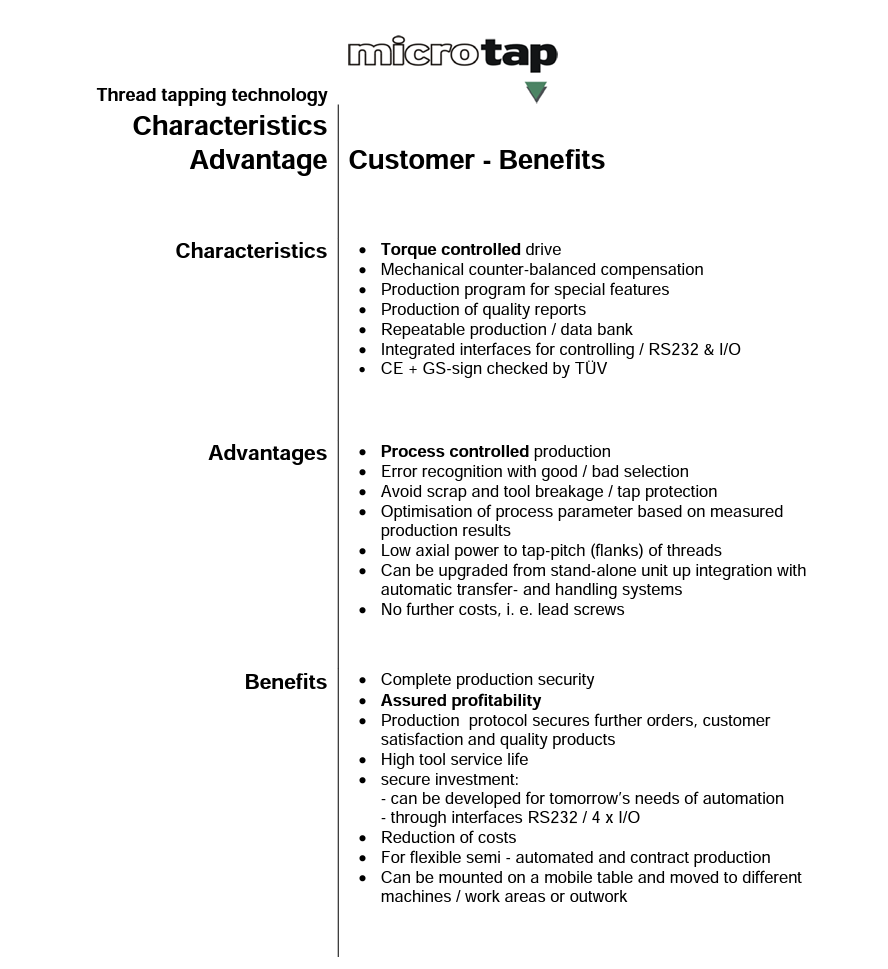

Microtap - Intelligent tapping machines that avoid tool breakage and scrap parts by precise monitoring of tapping torque. Microprocessor controls allow quick setting of speed depth torque etc.

The machine's ability to control the process and thread condition also makes it a very effective quality monitoring system.

Share

Machines all suitable for single hole tapping or fully automated high production work. They can also be linked to a computer for full process data acquisition.

Microtap takes the worry out of tapping on CNC machines especially in small holes where lubrication failure, chips in holes, shallow or undersize holes or blunt taps can all lead to breakage and often scrapped components.

Microtap will react to all of these and stop before any damage is done, it’s tapping ability is far superior to that available on CNC machines and it is a fraction of the cost.

When you break a tap on a CNC machine you have lost the cost of the tap often the value of the component being machined and then down time while the problem is analysed corrected and the machine is reset.





Thread capacity
(Thread cutting, DIN13 - 1 / 1,2 x D)
M1 - M5
X5CrNi189 / 1.4435
  M1 - M6
9sMn28 / 1.0715
  M1 - M6
AlCuMgPb / 3.1645
Thread depth / stroke max 45 / 65 mm
Insert holder Quick change system SWS0 , incl. 5 inserts nach DIN371 M1-M6 / DIN374/376 M3,5-M8
Insert holder / spindle B10
Tool holder/worktable max. 0 - 280 mm distance
Torque range Mz infinitely variable 5 - 220 Ncm
Spindle speed range rpm infinitely variable 0250 - 2200 min-1
Width / depth / height 510 / 323 / 808 mm
Column with hand crank adjustable 600 mm
Base plate / 2xT-Nut / PG6 288 x 475 x 50 mm/ M12x14 DIN650/ G1/4
Mains voltage / power consumption 230 Volt (115 Volt), 50 - 60Hz, 300 Watt
