Loc-Line In-Line Check Valve for 1/4" ID System

0

Modular Hose Systems

Loc-Line In-Line Check Valve for 1/4" ID System

QUANTITY

  • Buy Brand New
  • $0.00

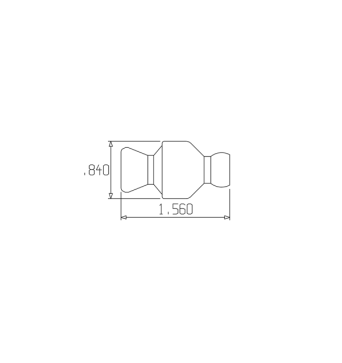

1/4" In-Line Check Valve 21191

Maintain fluid in the hose for the next cutting operation, thus reducing dry cutting.

-Helps eliminate fluid dripping from the hose after the pump is shut off.

-Designed for short cycles between pallet changes or tool changes.   Loc-Line is made of an Acetal copolymer.  This material in accordance with the rules in 21CFR 177.2470 meets the requirements of this regulation for food contact. All colorants are used at the recommended let-down ratio to meet 21CRF 178.3297. Loc-Line? is not sanctioned for use with alcoholic or fatty foods at any temperature. The material also meets NSF International Standards 14, 51 and 61 for contact with potable water

Please note that all applications have variables and conditions that will affect the maximum working pressures. Testing suitability for your application is always recommended.

Share

Maintain fluid in the hose for the next cutting operation, thus reducing dry cutting.

-Helps eliminate fluid dripping from the hose after the pump is shut off.

-Designed for short cycles between pallet changes or tool changes.

Loc-Line is made of an Acetal copolymer.  This material in accordance with the rules in 21CFR 177.2470 meets the requirements of this regulation for food contact. All colorants are used at the recommended let-down ratio to meet 21CRF 178.3297. Loc-Line? is not sanctioned for use with alcoholic or fatty foods at any temperature. The material also meets NSF International Standards 14, 51 and 61 for contact with potable water

Please note that all applications have variables and conditions that will affect the maximum working pressures. Testing suitability for your application is always recommended.

Materials and Properties:

Material: Acetal Copolymer

Colors: Orange,

Compatibility:

Yes: Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide

No: ChlorineAcids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite

Melting Point: 329 F

Maximum Operating Temperature: 170 F (Repeated exposure to this temperature will cause fatigue)

Recommended Maximum Line Pressure & Flow Rates:

1/4 System 50 PSI 250 gal/hour

1/4 System With Element Clamps 110 PSI 500 gal/hour
