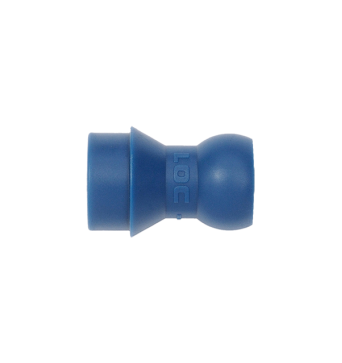

Loc-Line HAAS Short Lathe Adapter
- Buy Brand New
Loc-Line is made of an Acetal copolymer. This material in accordance with the rules in 21CFR 177.2470 meets the requirements of this regulation for food contact. All colorants are used at the recommended let-down ratio to meet 21CRF 178.3297. Loc-Line is not sanctioned for use with alcoholic or fatty foods at any temperature. The material also meets NSF International Standards 14, 51 and 61 for contact with potable water.
These Loc-Line adapters replace screw-lock spherical coolant nozzles found on most metal lathe machining equipment. Allows the use of all Loc-Line 1/4"ID System nozzles for improved coolant flow. With the addition of Loc-Line hose coolant can easily be directed beyond the lathe drill and collet chucks.
Materials and Properties:
Material: Acetal Copolymer
Colors: Blue, Orange, Black, White, Grey
Yes: Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide
No: Chlorine, Acids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite
Melting Point: 329F
Maximum Operating Temperature: 170F (Repeated exposure to this temperature will cause fatigue)
Recommended Maximum Line Pressure & Flow Rates:
50 PSI 250 gph
With Element Clamps 110 PSI 500 gph
