Modular Hose Systems

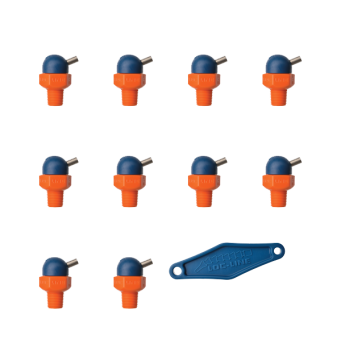

Loc-Line 1/8 High Pressure Turret 0.25" Nozzles
- Buy Brand New
Turret rotates independently of the nut for full range of motion. All packages with nozzle lengths greater than .000 contain an adjustment lever to aid is easy and accurate aiming of the nozzle. Nozzles with a length of .000 may be adjusted by inserting an appropriate sized allen wrench.
Material: Acetal body/stainless steel nozzle.
Maximum Pressure: 1000psi/69bar.
Maximum Temperature: 115F/46C. CT Style HPT Nozzle, 1/8"NPT, .250 Reach, 72 deg Swing
Materials and Properties
Maximum Pressure: 1,000PSI
Maximum Temperature: 115F (Repeated exposure to this temperature will cause fatigue)
Never attempt to adjust nozzle while under pressure!
Material: Acetal Copolymer, Stainless Steel
Yes: Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer, Solvents, Sodium Hydroxide
No: Chlorine, Acids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite
Note: Exposure to any chlorine based chemical will cause cracking and product failure!
Please note that all applications have variables and conditions that will affect the maximum working pressures. Testing suitability for your application is always recommended.
